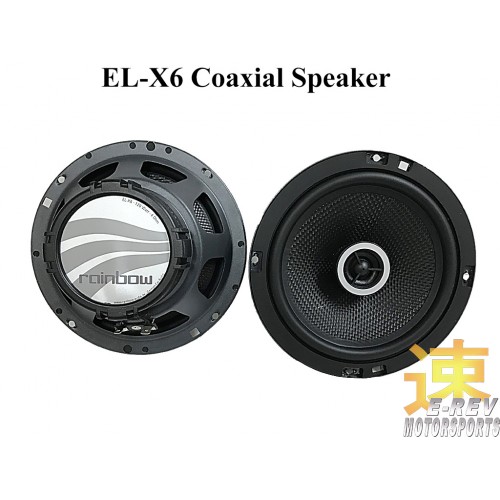

Specifications: Experience Line
Features
Folded, powder coated finish
Butyl rubber surround for controlled cone motion
Extremely flexible copper braid strands
Kapton voice coil with integrated low-pass
Linear Nomex-centering
Powerful iron ceramic magnet
16 mm silk dome tweeter with neodymium magnet high temperature
Crossover network and overload protection (PTC) for the tweeter speakers integrated
Specifications
Peak Power Handling: 120 Watts
Power Handling: 80 Watts
Minimum amplifier power: 30 watts
Sensitivity: 90 dB 1W/1m
Frequency response: 55 - 20,000 Hz
Impedance: 4 ohms
Crossover Slope: 6 dB / oct.
Crossover Frequency: 4,500 Hz
Thermal Protection: PTC
Depth without / with ring: 62/60 mm
Outer diameter without / with ring: 166/180 mm
Diameter: 142 mm
Mounting pitch: 156 mm.
