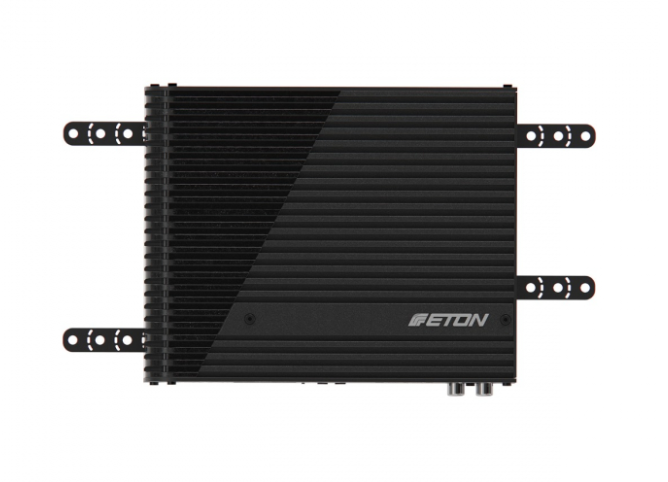

Mini 150.4

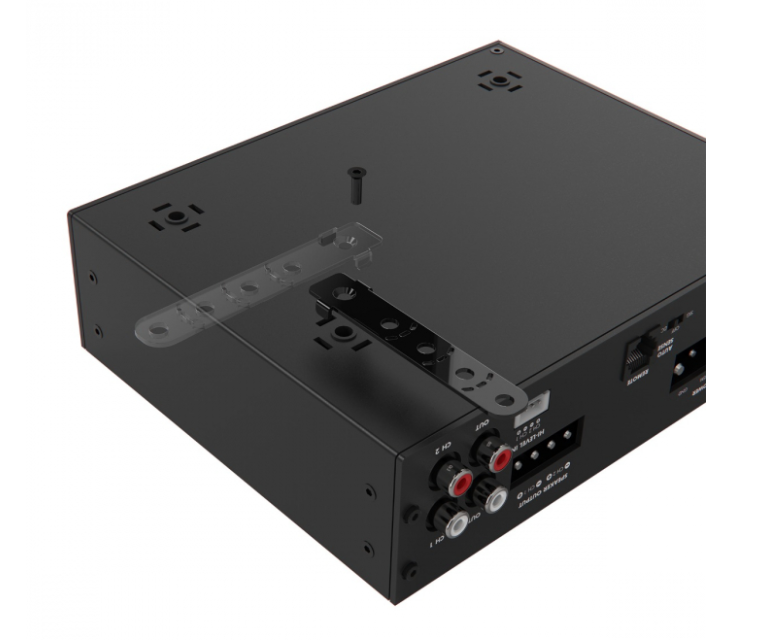

Small, powerful, easy to install and extremely low distortion - these are the new ETON advanced Class-D amplifiers! The MINI series scores all along the line. Full features: Hi-Level inputs, Lo-Level inputs, Auto-Sense On function (SIG/DC) and optimized for vehicles with start/stop function. Active filters with LPF and HPF, separate gain settings, level remote control, multi-mount installation feet for easy and quick installation, removable power and signal connectors and much more. Extremely good THD+N values convince even sound gourmets of this superbly crafted power amplifier. The minimal heat generation and sensational dimensions make the MINI series a problem solver.
Specifications
Output power BDA @ 14.4V 1% THD output - 4x 100W RMS @ 4 / 4x 155W RMS @ 2
Bridge output power measure at @ 14.4V 1% THD - 2x 310W RMS @ 4
THD+N (total harmonic dist. + noise) @ 1WRMS 13.6V / 4Ohm - 0.009%
THD+N (total harmonic dist. + noise) @ 5WRMS 13.6V / 4Ohm - 0.007%
Crossover - CH 1/2 HP 15-300Hz (x1) LP 300Hz-6kHz (x20) CH 3/4 HP 15-300Hz LP 30-300Hz (x1) LP 600Hz-6kHz (x20)
Dimensions - 183 x 146 x 50 mm
