MA 2

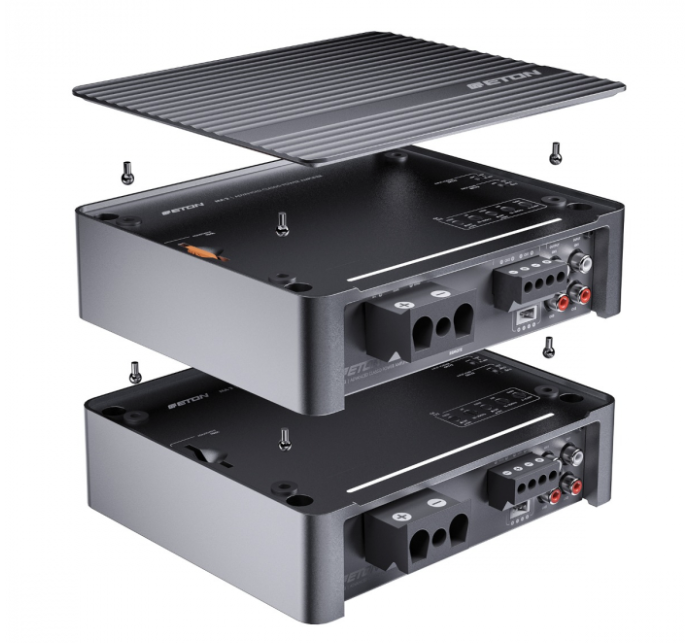

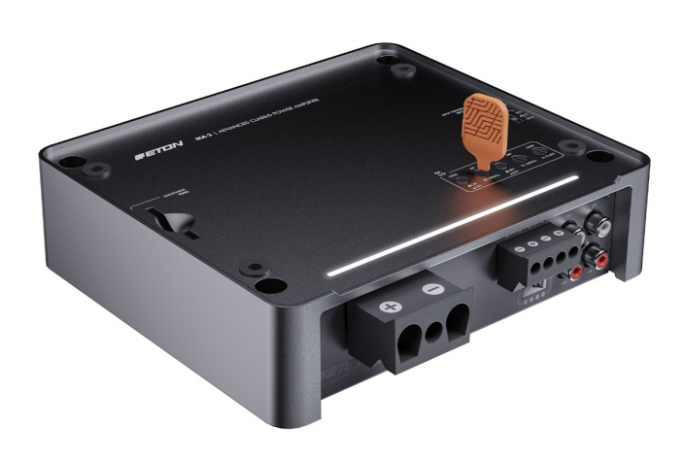

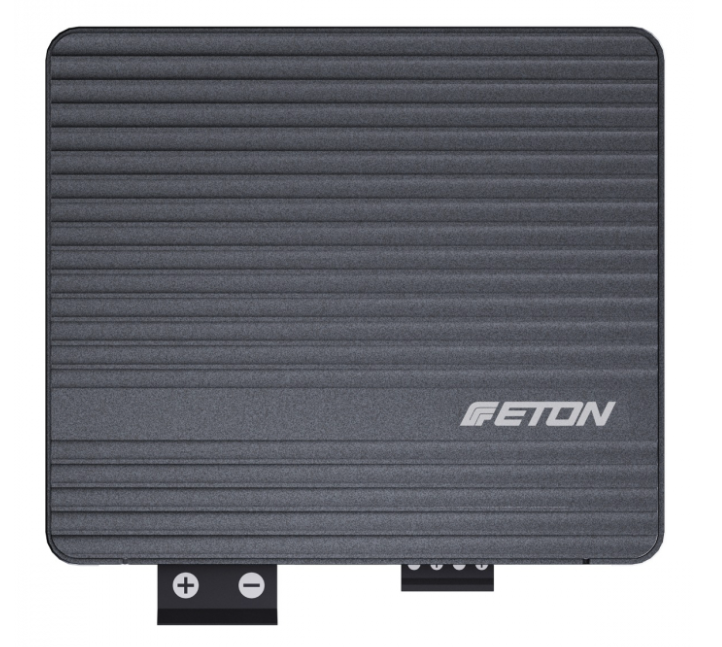

The new MA amplifier series combines the best performance with the smallest installation dimensions and also looks timelessly elegant. The high-quality die-cast aluminum enclosures are not only particularly attractive and have a perfect gunmetal surface finish, they are also particularly effective in terms of heat dissipation and enable maximum performance in the smallest possible size. In addition, the removable aluminum cover plate on the top conceals the newly developed LED lightbar, the integrated setting tool and numerous setting options, such as active filters: high & low pass, GAIN settings as well as high-level input voltage and input resistance. The new power amplifiers impress with high performance values, sensationally low THD+N distortion and full equipment: stackable, detachable connection plugs, variable mounting feet, hidden mounting holes, rotatable top cover by 180°, active filter, EPS load and much more.
Specifications
Performance at 4 Ω - 2 x 190 W RMS (14.4V/1%THD)
Performance at 2 Ω - 2 x 310 W RMS (14.4V/1%THD)
Power bridge at 4 Ω - 1 x 640 W RMS (14.4V/1%THD)
HPF / Hochpass Filter CH 1/2 - 15 – 300 Hz
HPF / Hochpass Filter CH 3/4 - NA
LPF / Tiefpass Filter CH 1/2 - 30 – 300 Hz
HPF / Hochpass Filter CH 3/4 - NA
High level Input - 2 CH (EPS + Input voltage)
Low level Input - 2 CH (RCA / Cinch)
Low level output - 2 CH (RCA / Cinch)
Adjustable Gain / level per channel pair - 6 V – 0.45 V
Suitable for vehicles with start/stop function (7.5V - 15.8V) - Yes
Auto-Turn on function - Yes / DC & AC/SIG
Remote control - Yes / wired remote control
Removeable connection plugs - Yes: Power / High-Level input / Audio Signal cables
Dimensions (LxWxH) - 184 x 160 x 51 mm
